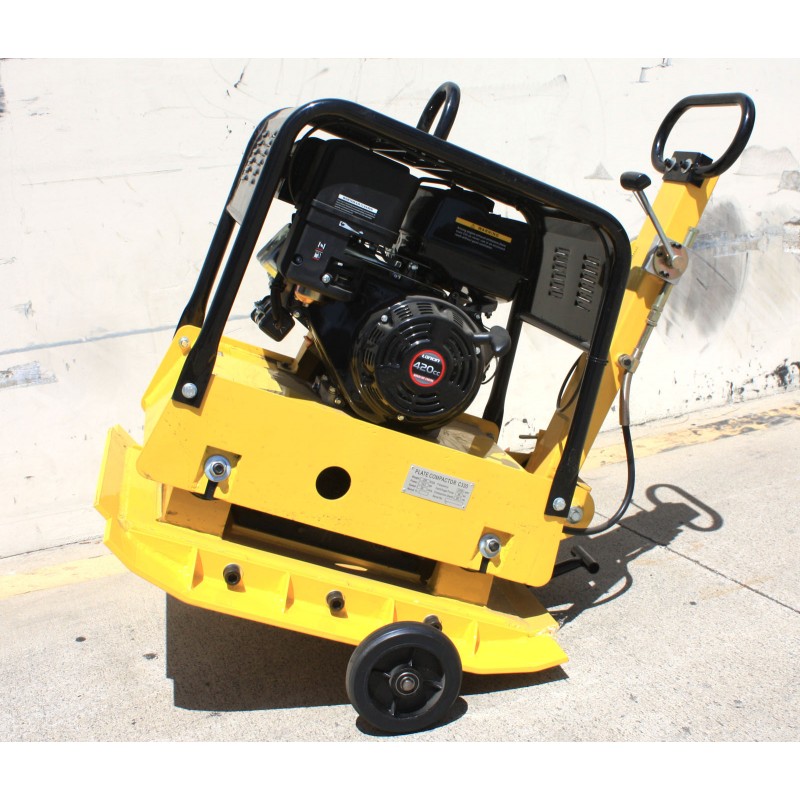

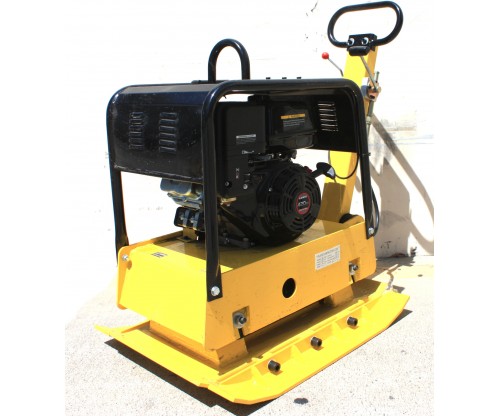

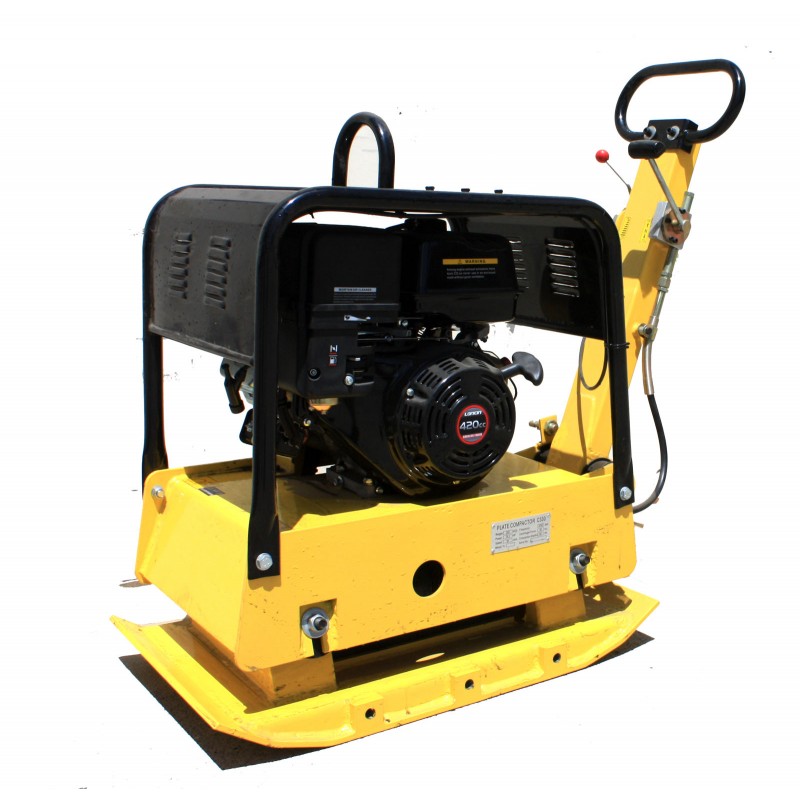

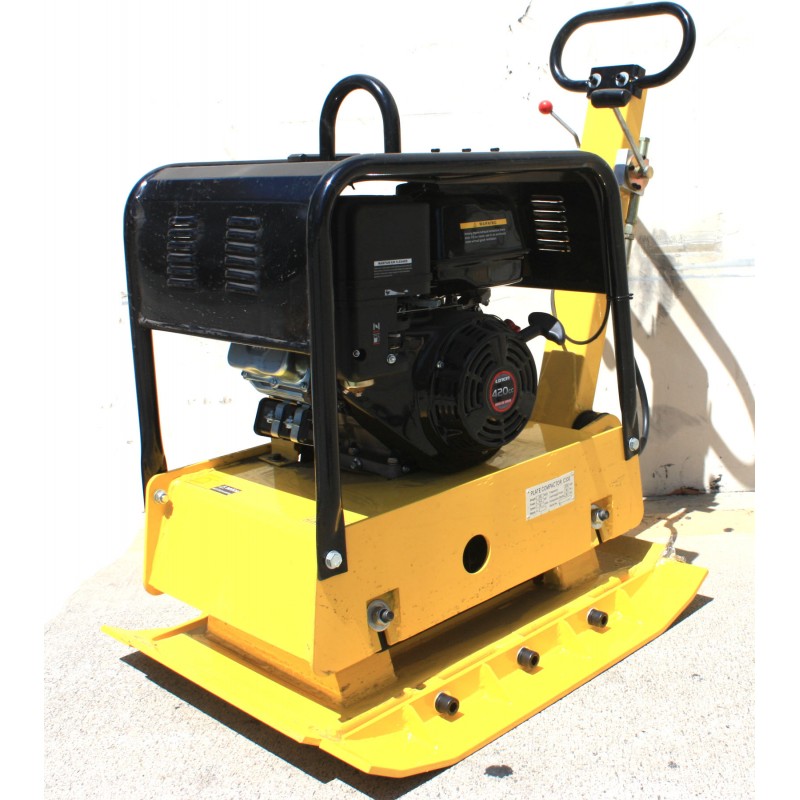

Reversible Dirt Vibratory Plate Compactor 420cc Gas Power Engine for Dirt Soil

Reversible Dirt Vibratory Plate Compactor 420cc Gas Power Engine for Dirt Soil

Categories: MRO & Industry Supply
Item#: C330
Availability: In Stock



  • Technical specifications:
    • Operating weight 500 lb (235kgs)
    • Centrifugal force 8543 lbf  (38kn)

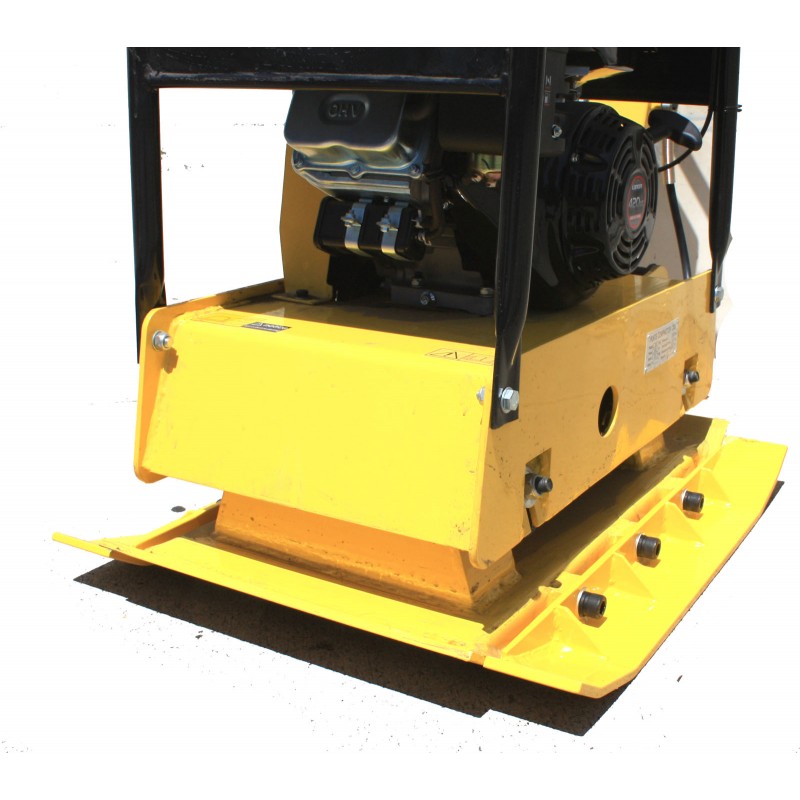

    • Base plate thickness 0.4 in
    • Base Plate 18-1/2" x 33"
    • Base Plate with both side extension: 26" x 33"
    • Height 31-1/2"
    • Compaction depth: 80cm
    • Frequency 3750 VPM
    • Advance travel (depending on soil & environmental factors) 49 ft/min
    • Engine Power: 14 HP 420cc Air-cooled  OHV Single Cylinder  4 cycle recoil start gasoline engine
    • Engine / Motor manufacturer: Locin EPA CARB APPROVED
    • Displacement 420cc
    • Operating performance 14HP at rpm 3,600 rpm
    • Tank capacity Fuel 1.1 Liter
    • Engine oil type SAE 10W-30
    • Power transmission From drive motor via automatic centrifugal belt drive direct to exciter.
    • Fuel type Gasoline

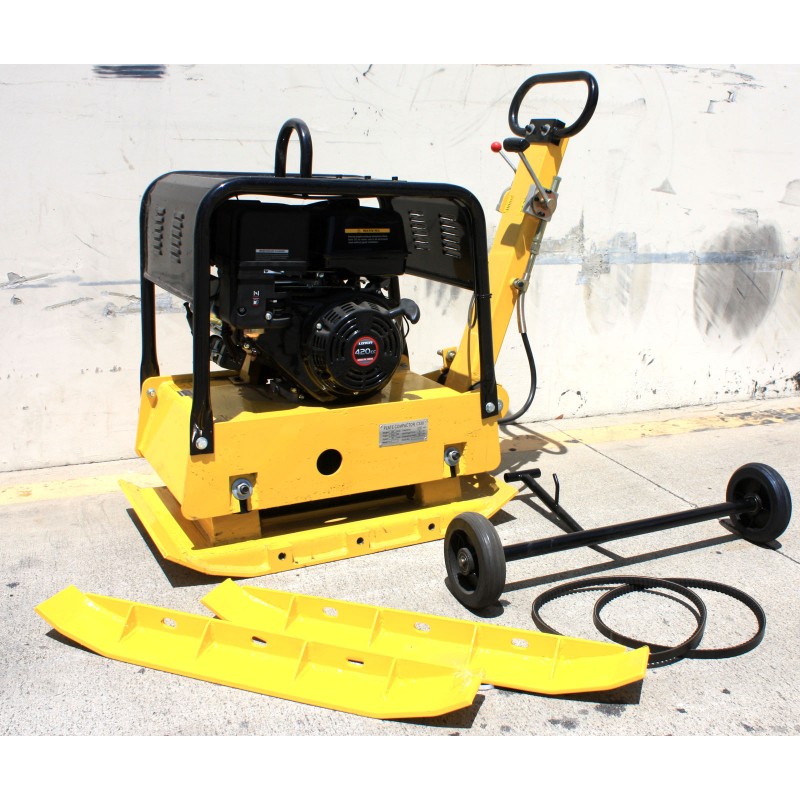

  • Content:

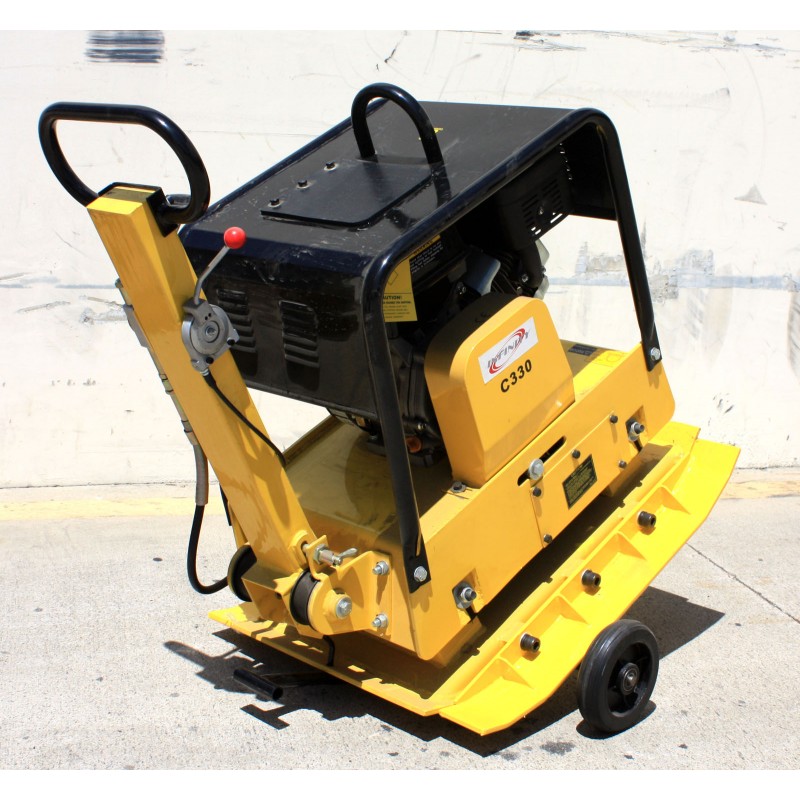

    • Compapctor C330model
    • 2x side extension
    • 2 extra belts
    • attachment wheels for transportation
    • instruction manual
