Introduction

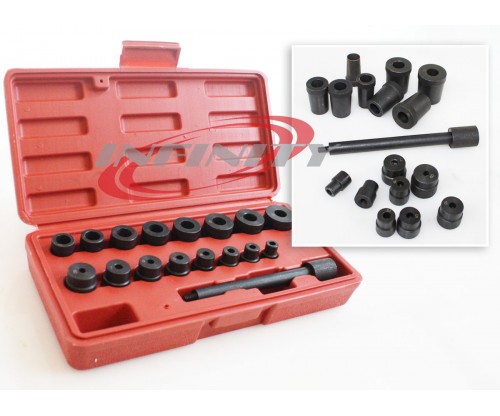

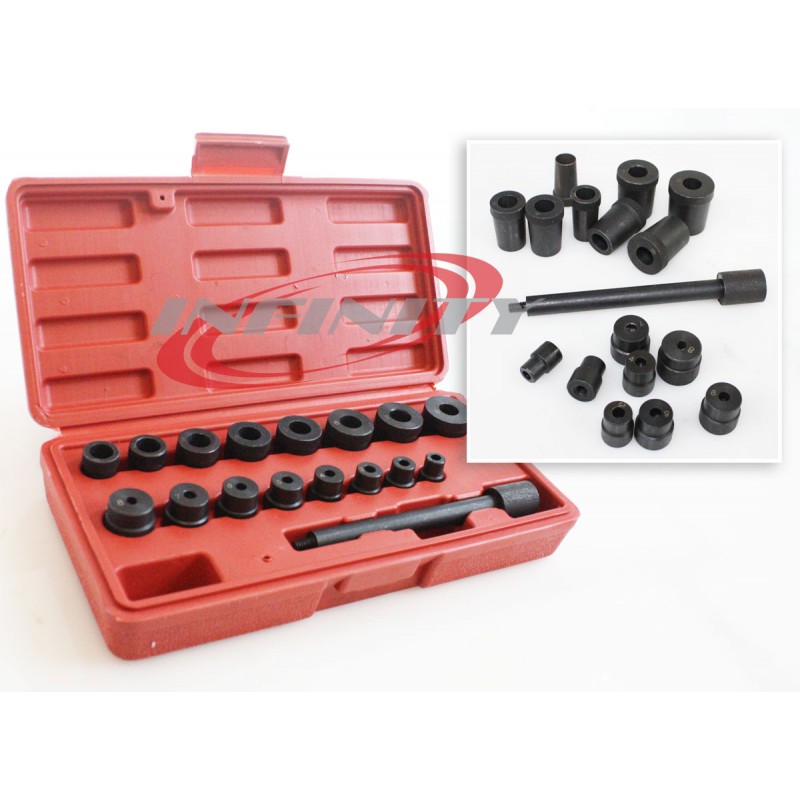

Chemically blackened steel components in presentation box. Aids alignment of clutch plate assembly.
Applications
Audi, Citroen, Fiat, Ford, Honda, Mazda, Mitsubishi, Nissan, Opel, Peugeot, Renault, Rover,
Saab, Toyota, Vauxhall, VW and Volvo.

Included:

Alignment Adaptor Bar
Centring Sleeves, Numbers 1 - 8
Guide Sleeves, Numbers 1 - 8

1 x 150mm Long Alignment Tool Shaft
8 x Pilot Bearing Adaptors:
15.5 x 14.2 x 26.6mm
16.7 x 15.4 x 27.0mm
19.0 x 17.5 x 27.5mm
20.0 x 18.6 x 27.5mm
21.4 x 20.0 x 27.4mm
23.0 x 21.6 x 27.5mm
23.5 x 22.0 x 27.5mm
26.6 x 24.2 x 27.5mm
8 x Clutch Plate Adaptors:
12.6 x 10.8 x 19.2mm
14.8 x 12.2 x 19.4mm
15.0 x 13.0 x 19.3mm
16.0 x 14.7 x 19.7mm
17.7 x 15.8 x 19.4mm
19.0 x 17.1 x 19.3mm
20.0 x 18.3 x 19.1mm
21.6 x 20.0 x 19.1mm

Instruction:

• 1. Select the appropriate guide sleeve for the internal diameter of clutch plate and slide it onto
  the alignment adaptor bar. Ensure the taper of the guide sleeve runs towards the threaded
  end of the adaptor bar.
• 2. Select the appropriate centring sleeve for the spigot bearing and screw it onto the end of the
  alignment adaptor bar.
• 3. Slide the clutch plate onto the guide sleeve, ensuring the correct orientation.
• 4 Fit the centring sleeve into the spigot bearing and slide the clutch plate, on the guide sleeve,
  up to the flywheel.
• 5. Fit the clutch pressure plate and cover assembly and bolt in place.
• 6. Remove the alignment tool.
