Description:

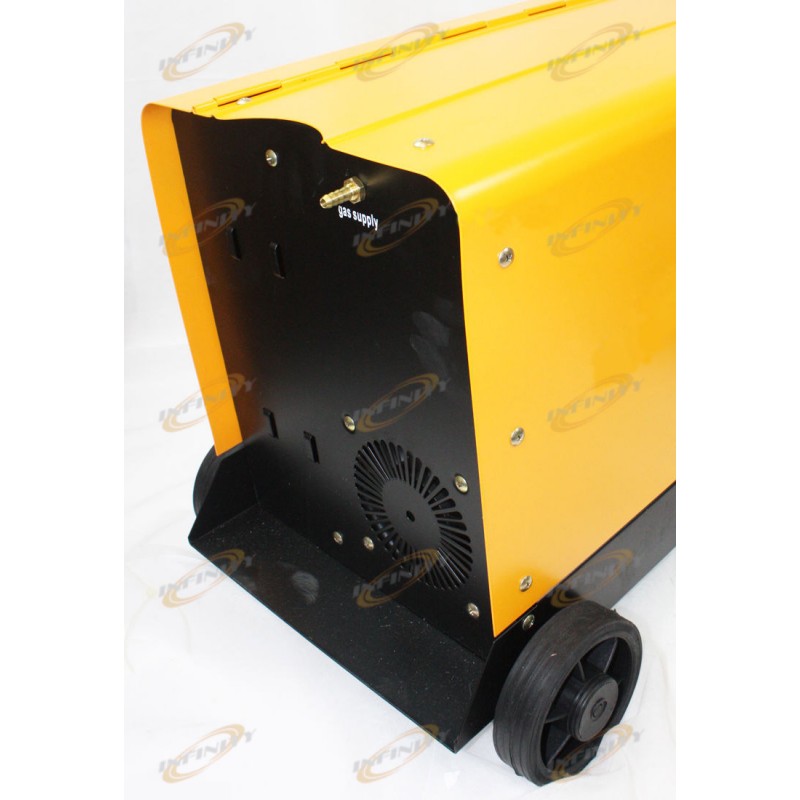

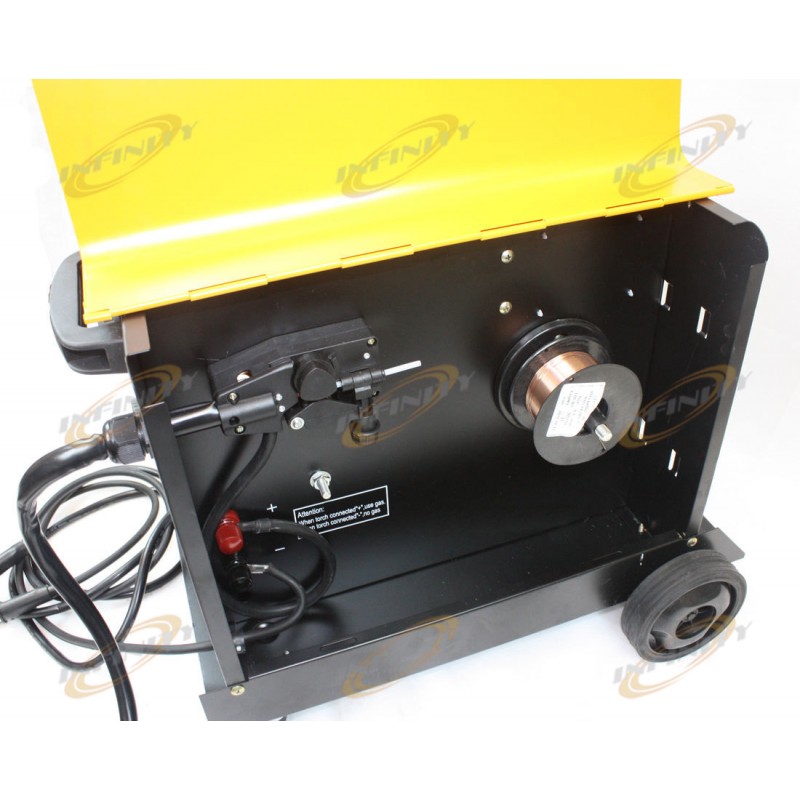

DC Single Phase, Fan-cooled Auto wire feeding welding machine on wheels for easy mobility. For Flux(no gas) and Mig-Mag(gas) welding. Built in Thermal Protection. The kit can weld different type of materials such as steel, stainless steel, and aluminium. Great for light industrial Fabrication, auto body, home, & construction.

Technical Specification:

• Voltage: 110V / 60 Hz Single Phase

• Welding Current:

  • 40 - 160 AMP (MIN)

• Duty Cycle: Aprox

  • 10% at 160AMP 22.5V

  • 35% at 86AMP 18.3V

  • 60% at 65 AMP 17.3V

• Max open circuit voltage: 34.2V
• Wire capacity:
  • .031 (0.8mm) steel & stainless steel
  • 0.030" to 0.039" (1.0mm) aluminum
  • 0.023" to 0.035"90 (0.6-0.8mm) flux core
• Torch with full ON/OFF safety control
• Automatic thermal safety protection
• Easily converted to gas operation
• Simple to operate-fan cooled

Package Included

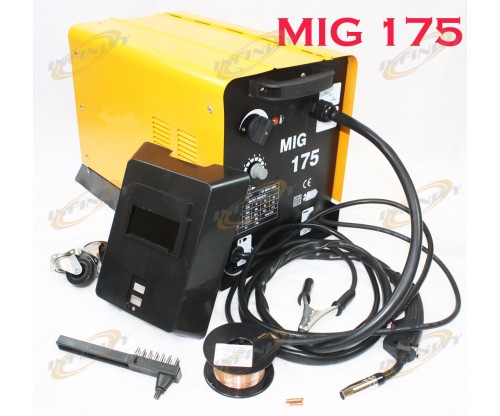

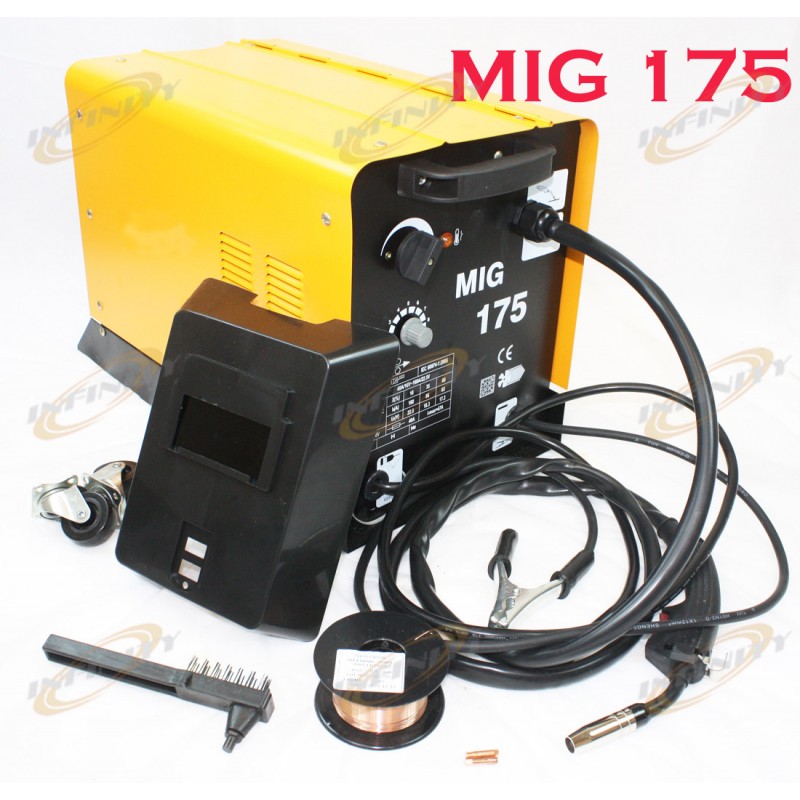

• MIG 175 Welder w/ Wheel
• Welding Spool Wire (1kgs)
• Welding Face Mask
• Chipping Hammer/ Wire Brush
• 2.5M Torch, xtra 2 Tips
• Ground Cord
