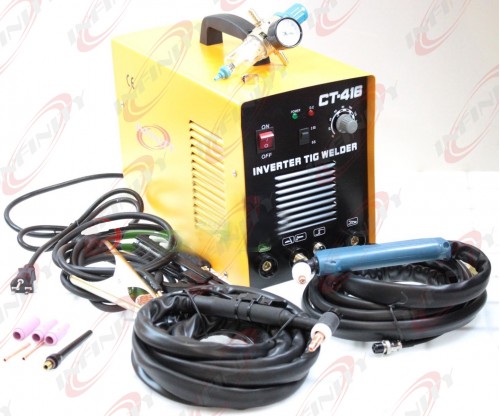

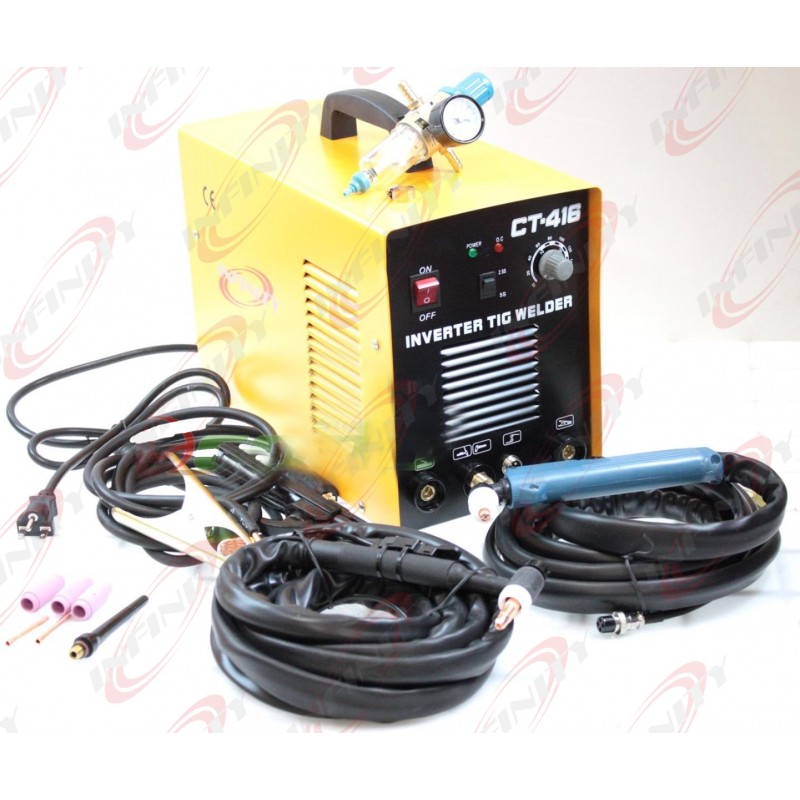

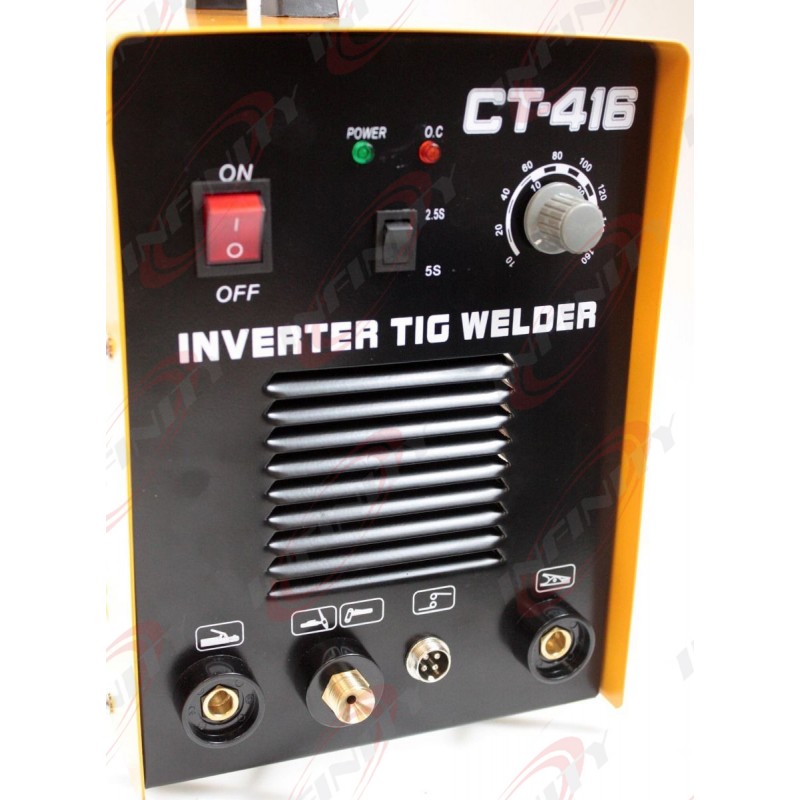

Multi-Function 220V Inverter Plasma Cut Cutting TIG ARC Stick Gas Welding Welder

Multi-Function 220V Inverter Plasma Cut Cutting TIG ARC Stick Gas Welding Welder

Categories: Welding Equipment
Item#: ct416
Availability: In Stock

  • CT416 have Arc welding, Tig (sticking) and Plasma cutting three processs, which adopt the most advanced inverter technology.

  • High Efficiency, energy saving, stabilizing and reliable machine

  • Can be used in welding and cutting of mild steel, stainless steel, alloy steel, copper and other color metal.

  • Included 1.5M earth Clamp, 2M MMA Clamp, 4M TIG Torch, 4M Cutting Torch, Air Regulator Filter, Extra Tips



Main Technical Parameter





CT416

Function

TIG

MMA

CUT

Input power voltage Frequency （ V/Hz ）

AC220(Single phase)
±10%,50/60

Rate input power capacity （ KVA ）

6

Rate input power （ A ）

34

21.7 26.4

31

Output current range （ A ）

10-160

10-160

20-40

Rated output voltage （ V ）

16

27

96

Duty cycle （ % ）

60

No-load power （Ｗ）

40

Efficiency （ % ）

80

Power factor(COSφ)

0.73

Insulation class

F

Protection class

IP21

Arc-Polite Model

Touch

HFoscillate

HFoscillate

Weight （ KG ）

14

Overall dimension （ mm ）

432x204x302

Air pressure （ Mpa ）

-

-

0.4
No-load-voltage
62
62
260
Work Voltage
26
16
96

Inner diametor of burner （ mm ）

-

-

1.2

Gas flow （ L/min ）

2-5

-

80

Max diameter of rod （ mm ）

 -

3.2

 -

Max cutting thickness （ mm ）

 -

 -

12mm
