1,Advanced inverter technology with Pulse, Gas Adjustable Relay, ,high frequency.Compact size and light weight ,easy to carry.
2,Stable and reliable welding current.
3,Low no-load loss,low power consumption.
4,Applicable for welding stainless steel and carbon steel
Features Suitable for welding plate specially Able to welding plate which thickness is from 0.1mm to 0.5mm Lightness and carry easily HF Arc-starting and strong welding permeability Smooth and beautiful welding surface.
ITEM
TIG-200M
Power voltage(V)
230
Rated input capacity(KVA)
4.5
input voltage frequency(HZ)
60
No-load voltage(V)
56
Output current range(A)
10-200
Rated output voltage(V)
18
Duty cycle(%)
Efficiency(%)
85
Weight(KG)
11
Protection class
IP21S
Welding thinkness(mm)
0.3-9
Usable electrode(mm)
1.6-4.0
Insulation class
F
Measurement(MM)
460x270x345

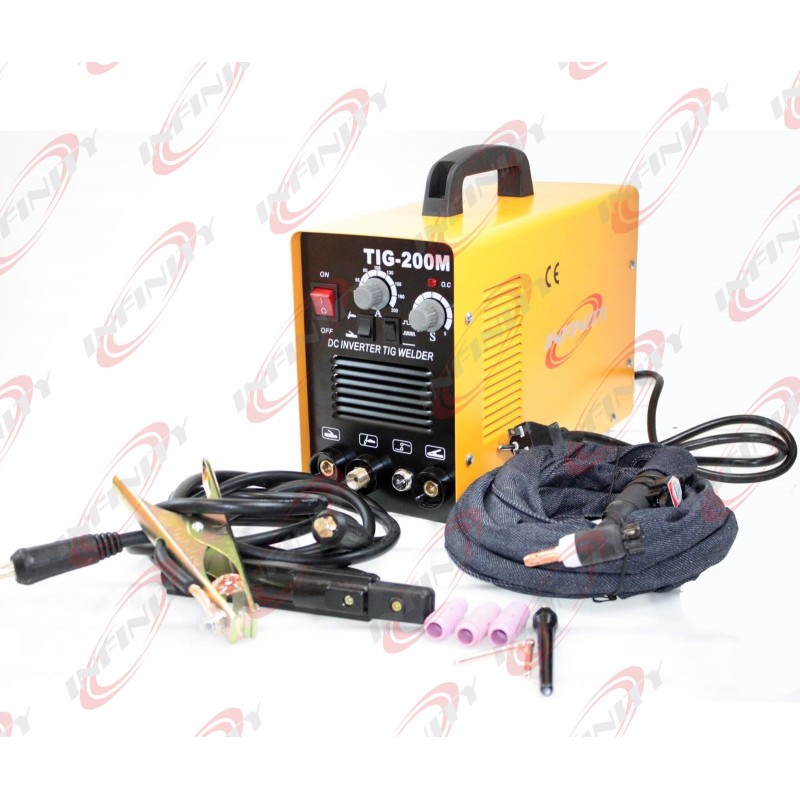

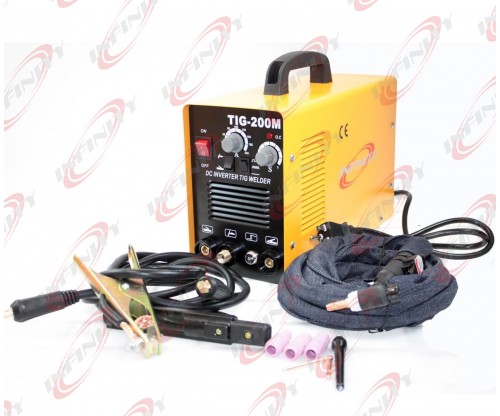

Accessory

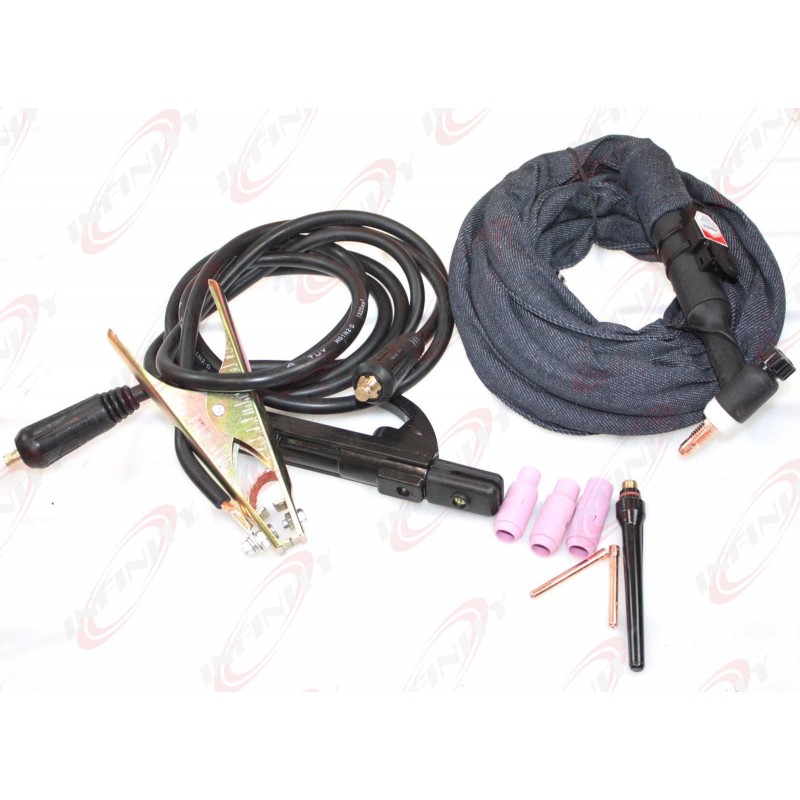

1.5M earth clamp,2M MMA torch,4M TIG torch,brush and mask
Pkg
1pcs
Packing
carton
Certificate
CE,RoHS
