Universal Radiator Pressure Tester Kit

Product Description

Designed to fit most major Vehicle brands, domestic & foreign. rs for most domestic and foreign vehicles, Includes pressure testing pump with gauge and hose, thermometer, 4 chromed steel cap adapters, and 8 anodized aluminum cap adapters. Also includes a quick-connect adapter to allow use with other cap adapters available on the market. Comes in a blow molded case.

Technical Details

Includes pressure testing pump with gauge and hose

thermometer, 4 chromed steel cap adapters, and 8 anodized aluminum cap adapters

Also includes a quick-connect adapter to allow use with other cap adapters available on the market

Comes in a blow molded case

THE CASE MAY BE DAMAGED OR CRACKED DURING SHIPPING.

Operating Instruction:

• 1. Remove the lid of radiator. If the radiator is in high temperature, wait it cold down or cover wet towel until normal temperature.
• 2. Select the correct Test Adapter, then screw on the radiator.
• 3. Attach the correct Test Adapter, then screw on the radiator.
• 4. Press the Hand Pump to inflate the pressure up to 15-20psi. Caution : Do not exceed the Max. Pressure of Gauge.
• 5. Check the Pressure Gauge. If the pointer is down, you must inspect the lines of radiator, then repair or replace the damage parts.
• 6. After servicing press the release button to release the pressure of radiator until the pressure gauge to zero
• 7. Before storing :
• 7-1 Attach the Test Adapter to quick coupler of Hand Pressure Pump, then press the Hand Pressure Pump few times to push remnant water out the Test Adapter.
• 7-2 Drop pneumatic oil into the air hole of the Hand Pump end to lubricate the piston of Hand Pump
• 8. Be careful to use this tools and them cleaning

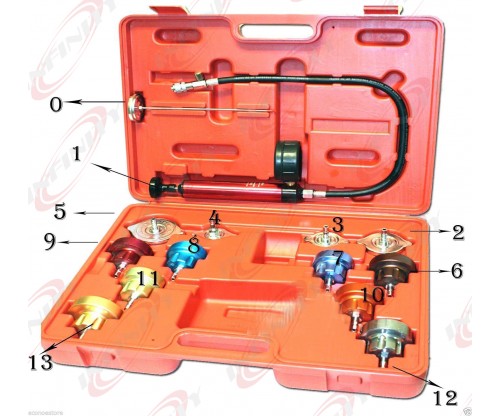

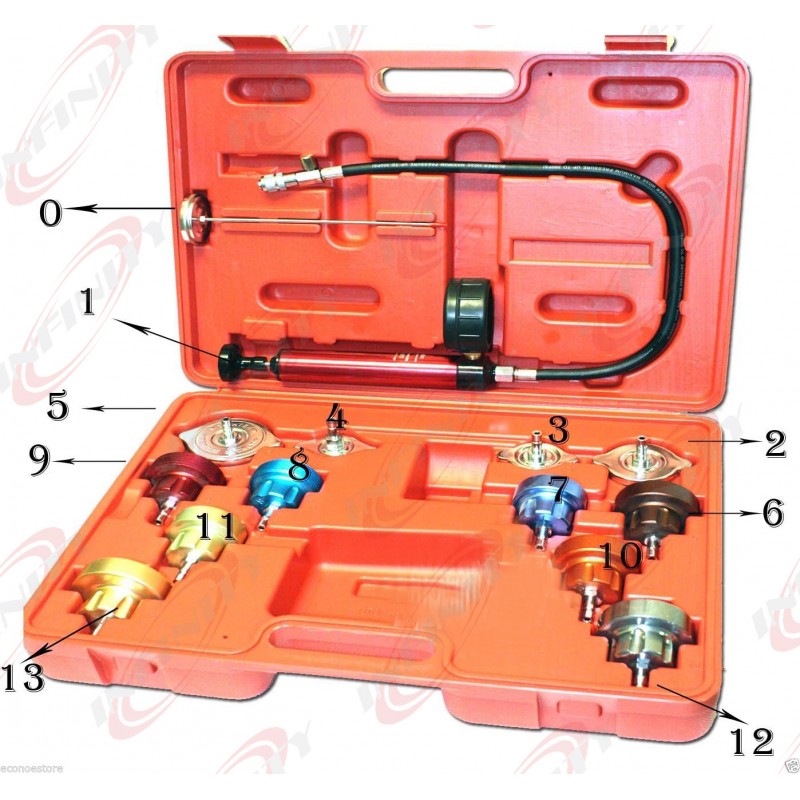

Specification :

• 0 : Temperature
• 1 : Pressure Testing Pump With Gauge
• 2 : GM(CADILLAC)
• 3 : Mercedes ,GM(Buick) ,Jeep
• 4 : Peugeot, Subaru, Chrysler, Acura , GM(Nova , Spectrum , Sprint) , Mitsubishi, Nissan , Mazda , Toyota , Infiniti , GEO ,
• Suzuki ,Isuzu , Mercedes
• 5 : Honda ,Toyota , Suzuki , Mitsubishi , Chrysler , Acura
• 6 : Mercedes (ML-class) , GM( achiva ,skylark , gramd am-1992-2002) ,Vehicles
• 7 : Volvo , Saab , Sterling ,Citroen , Renault , Fiat , Alfa ,Jeep
• 8 : VW (Vento , T4 , Passa-1996 , Golf , Beetle , Sharan)
• 9 : Audi (A4 , A5 , A6), BMW345 ,VW (Passa-1997-2002) ,Porsche (Cayenne)
• 10 : BMW
• 11 : Audi, VW
• 12 : Mondeo , International , Land Rover, Opel , Jaguar , Ssang , Yong motor, BMW E60
• 13 : Mercedes (C-class, E-class, S-class)

(Item does not come with any instructions or Manual)
