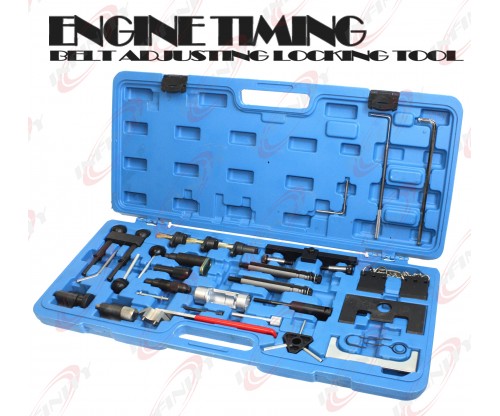

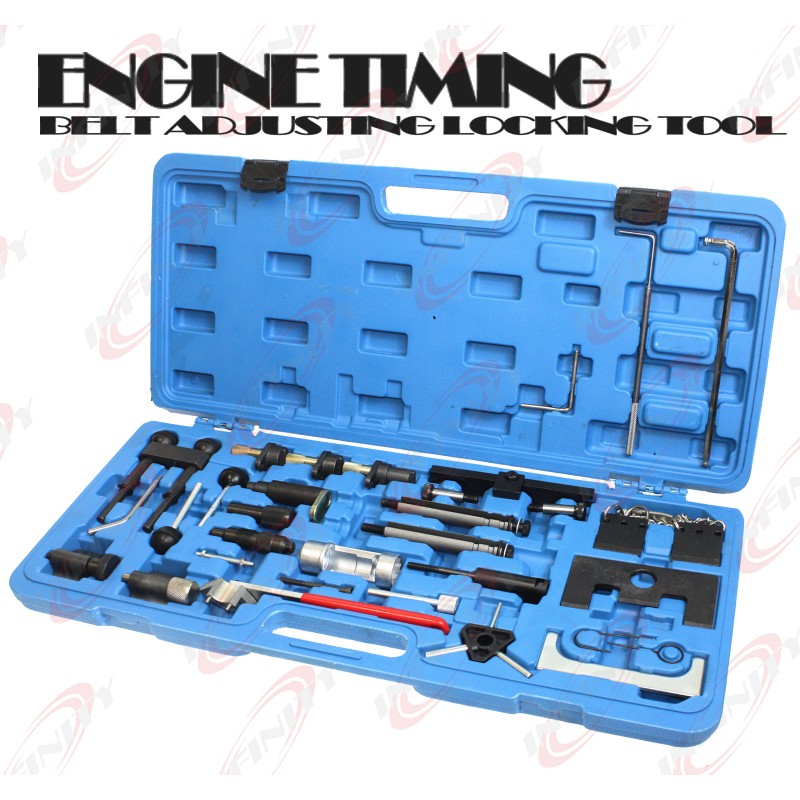

Timing belt timing belt camshaft locking tool
to vehicles of VAG Group

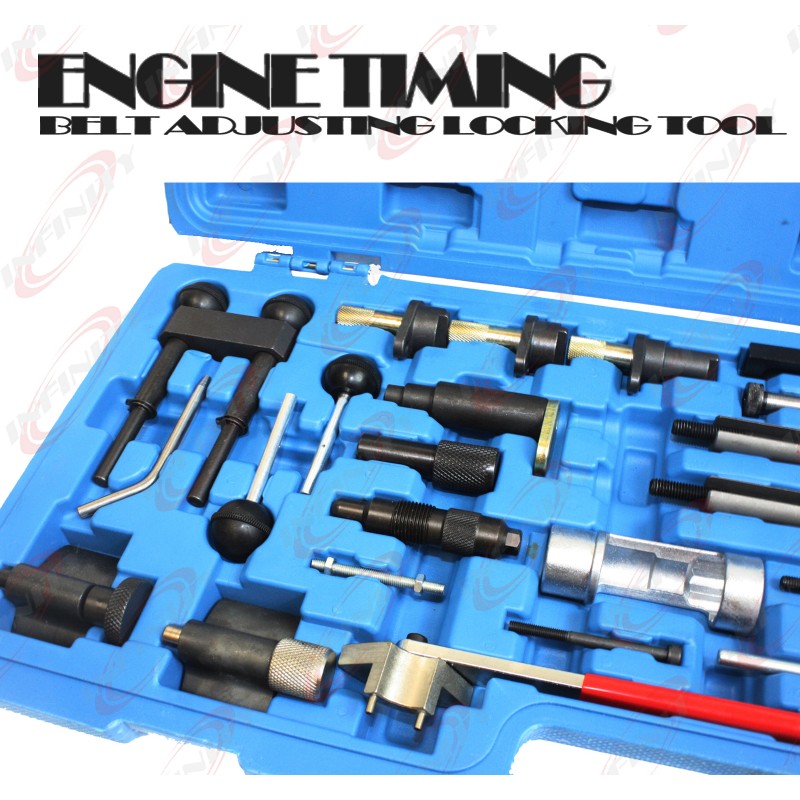

Content from the trailer:


• 1. camshaft adjustment gauge - for 1.9 LD / SD / SDI / TD / TDI (from 97), not for pump-nozzle, also suitable for Ford and Volvo VW OE comparison number 3418

• 2. Locking - for camshaft and crankshaft at 2.5 L TDI V6 and 3.3 L V8 TDI (Audi A8) VW OE comparison number 3458

• 3. lock mandrel for crankshafts - for V6 / V8 Diesel VW OE comparison number 3242

• 4. Stop mandrel - to fix the tensioner for timing belt change

• 5. lock mandrel - to lock the injection pump sprocket at 1.9 LD / SD / SDI / TD / TDI and the camshaft at TDI pump-jet engines VW OE comparison number 3359

• 6. Locking - to lock the oval crankshaft toothed belt wheel with 2.0 L TDI pump nozzle VW OE comparison number T 10100

• 7. Timing Belt Spanner Wrench - flexible head with locking screw, thus well suited for cramped spaces (functions of the following keys idler V 159 , 3387 and T 10020 )

• 8. Unscrew the screw securing the fan clutch

• 9. camshaft adjustment gauge - fixed the camshaft and pump shaft when replacing a timing belt and installation of injection pump VW OE comparison number 2065 A

• 10. Locking - to lock the crankshaft belt pulley at 1.2 / 1.4 L / 1.9 L TDI pump nozzle VW OE comparison number 10050

• 11. lock mandrel - to fix the tensioner when replacing a timing belt VW OE comparison number T 40011

• 12 studs - relieves the belt tension by pressure build-up on the plunger on the drive belt tensioner OE VW comparison number T 10092

• 13. Support rods - to advance the front wall to the engine VW OE comparison number 3369

• 14. lock mandrel - for TDI pump nozzle VW OE comparison number 3359

• 15 Retaining plate - to lock the tensioner timing belt on TDI pump nozzle VW OE comparison number T 10008

• 16. Locking device - Camshaft 1.4 / 1.6 L 16V petrol engines VW OE comparison number T 10016

• 17 lock mandrel - to lock the injection pump sprocket VW OE comparison number 2064

• 18. camshaft adjustment gauge - to lock the camshaft on 1.9 L TDI and SDI, disassembly of the valve cover is not required VW OE comparison number T 10098 A

• 19. Locking - for camshaft and crankshaft when changing the timing chain on the 1.2 L 12V 3-cylinder engine VW OE comparison number T 10123

• 20. 12-kt. Diesel -Einspritzdüsen, SW22 VW OE comparison number 3078

• 21. fixing bolt for locking the crankshaft when checking the timing VW OE comparison number T 10120

• 22 holder for chain tensioner for installation and removal of the chain tensioner VW OE comparison number 3366

• 23 Absteckdorn 4, 7 and 8 mm

• 24 locking the tensioner roller for removing and installing the timing belt on vehicles with modified engine mounts VW OE comparison number T 10264

• 25. actuation of the clamping role in removal and replacement of the timing belt on vehicles with modified engine mounts VW OE comparison number T 10265

• 26. For injection and Diesel engines for locking the clamping element in disassembly of the V-ribbed belt. VW OE comparison number T 10060 / T 10060 A

• 27. Locking - for camshaft and crankshaft when changing the timing chain on the 1.2 L 12V 3-cylinder engine VW OE comparison number T 10120

• 28 Absteckdorn

• 29 incl. System case

Technical info:

• Changing the timing belt, crank and Nockenwellenarretierwerkzeug
  for the professional repair of VAG engines

• Suitable for motors with the following engine codes:
   AFB / AKE / AKN / AYN / CONSTRUCTION / BCZ / BDG / BFC


The tool can be used eg for the following car brands:

Diesel engines:

1.2 , 1.4 , 1.9 , 2.0 TDI PD, 1.7 , 1.9 D / TD / SDI / TDI, 2.5 TDI V6

Audi: 80, A2, A3, A4, A6, Cabriolet ( 95-00 )

 Seat: Alhambra, Arosa, Altea, Cordoba, Ibiza, Inca, Leon, Toledo

 Skoda: Fabia, Felicia, Octavia ( 93-05 )

 VW: Bora, Caddy, Golf, Lupo, New Beetle, Passat, Polo, Sharan, Transporter, Touran

Petrol engines:

1.2 6V - 1.2 12V - 1.4 - 1.6 - 1.8 - 1.8 T - 2.0 16V

Audi: 80 - A2 - A3 - S3 - A4 - A6 - TT

Seat: Alhambra, Arosa, Cordoba, Ibiza, Inca, Leon, Toledo

Skoda: Fabia, Octavia (from 96)

VW: Bora, Caddy, Fox, Golf, Lupo, New Beetle, Passat, Polo, Sharan, Touran

Lock mandrel and angle screwdriver (SW6) for timing belt tensioner

with 4-cylinder Diesel engines, eg VW Golf, Caddy, Sharan, Touran from 2004

Locking for camshaft timing chain and timing belt tensioner,


for gasoline engines 1.8 , 1.8 t (double camshaft), 2.4 , 2.7 , 2.8 (V6)

eg: Audi A3, A4, A6, TT

Seat Alhambra, Cordoba, Ibiza, Leon, Toledo

Skoda Octavia
