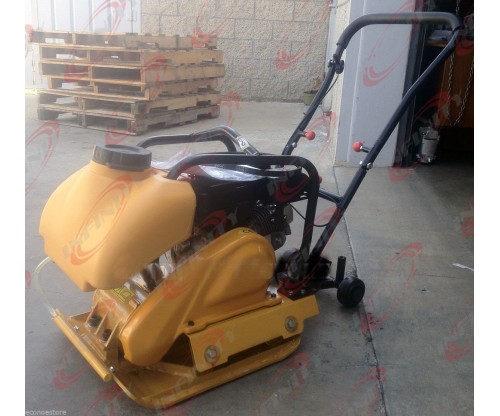

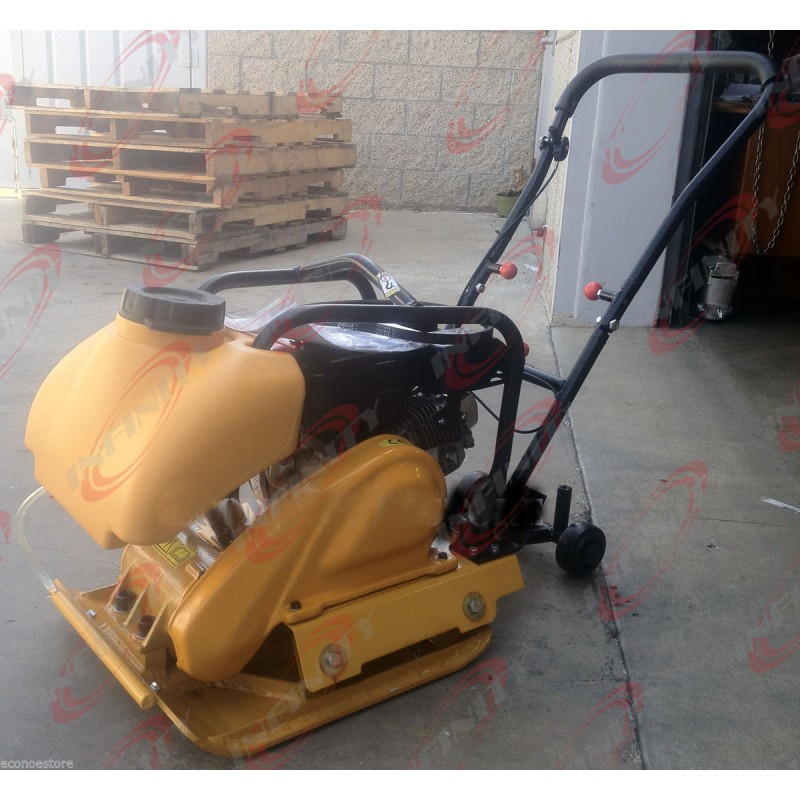

6.5 HP GAS VIBRATION PLATE COMPACTOR WALK BEHIND TAMPER RAMMER W/ WATER TANK

Categories: MRO & Industry Supply
Item#: COMPACTOR
Availability: In Stock

Features Include:

  • Engine type:Forced air-cooled,4-stroke, gasoline engine GENERATION III ENGINE > LF-168F-2 (non infringement to the Honda gx160)
  • Engine :air-cooled,single cylinder,4-stroke

  • Max power 4.8KW(6.5HP) / 3600rpm
  • Displacement: 196 ml
  • Power(Hp) : 6.5 GENERATION III ENGINE > LiFan-168F-2 (this is approve by honda. non infringement to the gx160)


    Compacts 12" Depth . 1 Gallon Fuel Tank . 10w30

    Package Weight 190 lbs.

  • Effective base area: 25 X 18 inch (620 X 450 mm)
  • Vibration frequency: 6500
  • Travel Speed: Max. 60 foot /min
  • Climb ability: 0 ~ 20 degree
  • Impact force: (4000lb force)
  • Compaction area: Max. 3229 ft2 / hr
  • Compaction depth: Max. 7.90 inch
  • wheel kit included
  • Compaction depth(soil)(cn): 30
    Forward speed(soil)(m/min): up to 30
    Compacted area(soil)(m2/min): up to 600
    Gradeability: 30%
    Package Dimension: 25.6(L) X 19.3(W) X 27.6(H) inch
  • COLOR MAY VARY
